SID-X3N DisplayPort, HDMI, VGA & DVI Auto Switcher

Description

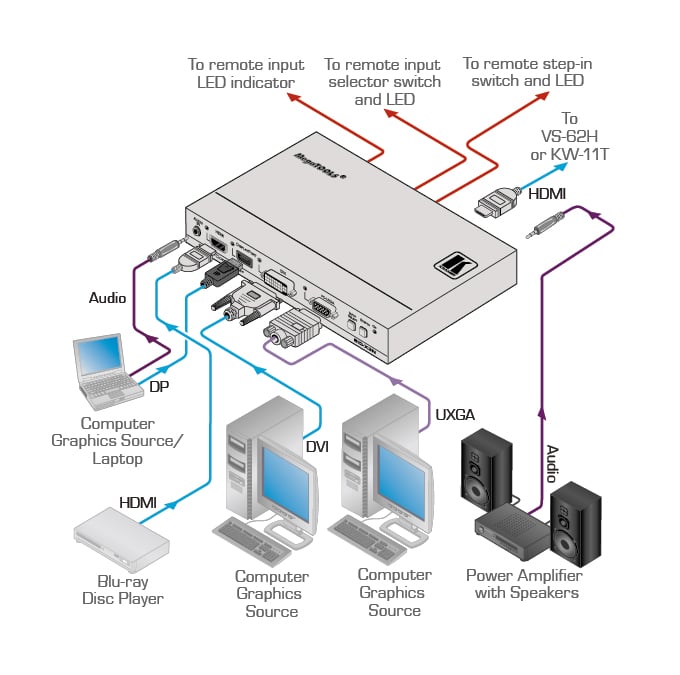

The SID−X3N is an HDMI transmitter, step−in commander for computer graphics video, HDMI, DVI, DisplayPort and unbalanced stereo audio signals. The unit includes a “Step−In” button that allows the local source to be routed as the active source when connected to the VS−62H.

•  Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
•  HDTV Compatible.
•  HDCP Compliant. — Works with sources that support HDCP repeater mode.
•  HDMI Support — Deep Colour, x.v.Color™ and 3D.
•  EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
•  Data Equalization and Reclocking.
•  Input Signal Detection — Based on video clock presence.
•  Automatic Input Selection — Based on manual selection or last connected input.
•  Automatic Analog Audio Detection and Embedding.
•  Local Balanced Audio De–Embedding.
•  Support for Digital Audio Formats.
•  Lockable EDID.
•  Local Step–In Switching — Button & contact closure.
•  Supports Programmable Step–In Functionality — Over HEC enabled HDMI cables, when used with compatible switchers such as the VS–62H.
•  Power Supply — Requires independent power supply.
