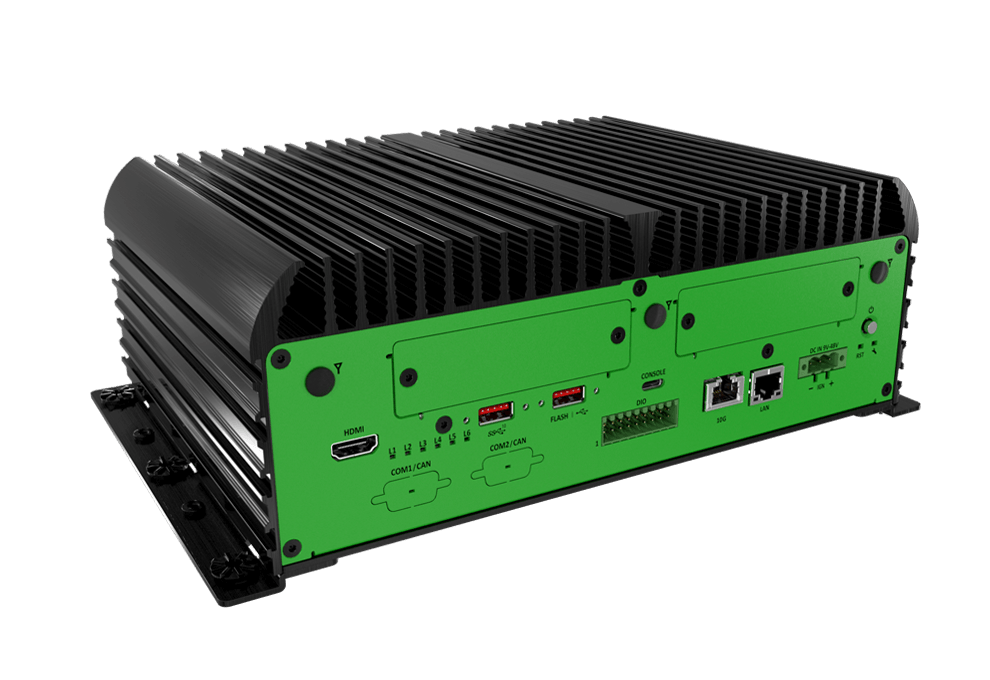

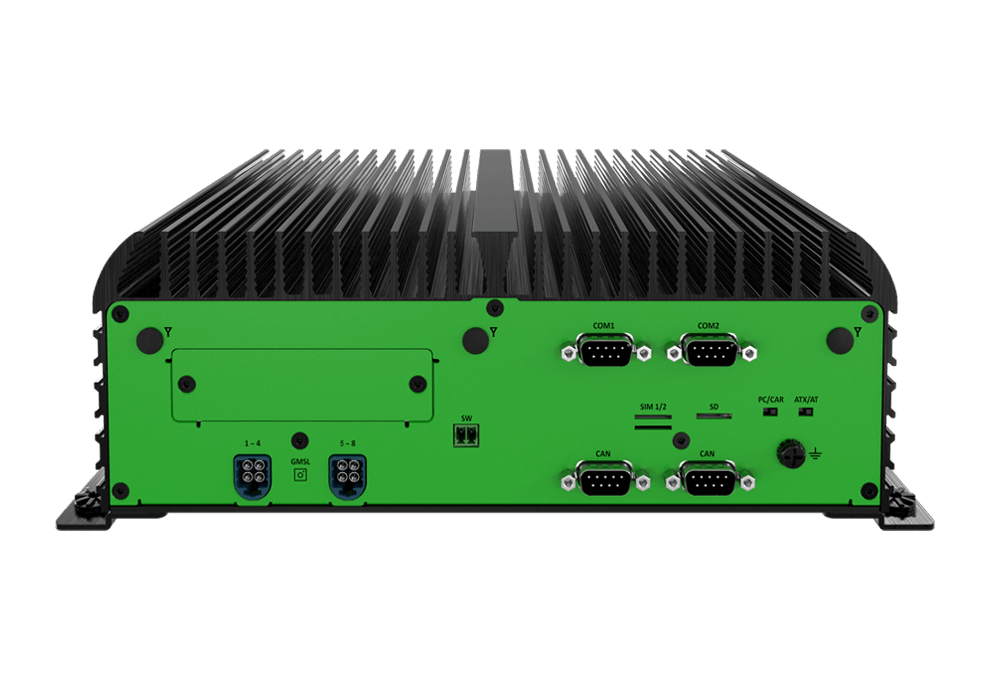

JCO-6000-ORN-A NVIDIA Jetson AGX Orin™ AI Computer

JCO-6000-ORN-A NVIDIA Jetson AGX Orin™ AI Computer

FEATURES

  • 8-core/12-core Arm® Cortex®-A78AE v8.2 64-bit CPU
  • LPDDR5 3200MHz on SOM. 32 GB/64 GB
  • 1x HDMI, 3840 x 2160 @ 60Hz
  • 1x GbE, 1x 10 GbE (Wake-on-LAN and PXE)
  • 2x External SIM Socket, 1x Micro SD Socket
  • 1x eMMC 5.1 Storage, 64 GB
  • 1x M.2 (M Key, 2280, PCIe x4, Support NVMe)
  • 1x USB 3.2 Gen 2, 1x USB Type C, 1x USB 2.0
  • 8x DI + 8x DO with isolation
  • 9 to 48VDC Wide Range Power Input Supporting AT/ATX Mode
  • Wide Operating Temperature -20°C to 55°C (60W CPU)
  • Support GMSL 2 QUAD Port Mini Fakra, 8x Ports | 1280×720 @30FPS (optional)
  • Up to 2x EDGEBoost I/O Support

Description

The JCO-6000-ORN-A NVIDIA Jetson AGX Orin™ AI Computer from Premio Inc. is a cutting-edge, ultra-rugged fanless edge AI industrial PC, designed to handle demanding AI workloads at the edge. Powered by NVIDIA Jetson AGX Orin modules, this high-performance computing solution delivers an impressive 275 TOPS (Tera Operations Per Second), making it ideal for AI-driven applications such as autonomous machines, computer vision, deep learning, and robotics.

Unparalleled Connectivity and Expandability

The JCO-6000-ORN-A is built for flexibility, offering support for up to 8x GMSL2 cameras, enabling real-time, high-bandwidth data processing for vision-based AI applications. In addition, it comes equipped with up to 2x EDGEBoost I/O modules, which expand its capabilities with USB 3.0, Power over Ethernet (PoE), and GigE Vision support. This makes it a perfect fit for industrial automation, smart surveillance, and intelligent transport systems.

Advanced Remote Management & Reliability

Engineered for mission-critical deployments, the JCO-6000-ORN-A features an out-of-band (OOB) management module, allowing remote diagnostics, monitoring, and system recovery—even in cases of network failure. Its fanless, industrial-grade design ensures silent operation, enhanced durability, and high resistance to shock, vibration, and extreme temperatures, making it well-suited for harsh industrial environments.

Powering the Next Generation of AI Solutions

With its industry-leading AI computing power and energy efficiency, the JCO-6000-ORN-A enables developers and enterprises to accelerate AI inference at the edge. Whether you’re working on generative AI, machine learning, real-time analytics, or next-gen robotics, this NVIDIA Jetson AGX Orin-powered edge AI PC delivers the speed, scalability, and reliability required for the most demanding AI applications.

Bring your next-generation products to life with the JCO-6000-ORN-A NVIDIA Jetson AGX Orin™ AI Computer, powered by the world’s most powerful embedded AI modules for generative AI, computer vision, and advanced robotics.

Discover more about NVIDIA Jetson AGX Orin™ here.

Visit the Nvidia website.

Additional information

CPU Type

ARM CPU

Product Type

AI PC

Downloads

JCO-6000-ORN-A Datasheet

1 file(s)

443KB

Available Models
JCO-6000-ORN-A Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 2x LAN, 3x USB, 2x COM
JCO-6000-ORN-A-4L Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 6x LAN, 3x USB, 2x COM
JCO-6000-ORN-A-4LM12 Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 2x LAN, 3x USB, 2x COM, 4x M12 LAN
JCO-6000-ORN-A-8L Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 10x LAN, 3x USB, 2x COM
JCO-6000-ORN-A-8LM12 Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 2x LAN, 3x USB, 2x COM, 8x M12 LAN
JCO-6000-ORN-A-4P Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 2x LAN, 3x USB, 2x COM, 4x PoE
JCO-6000-ORN-A-4PM12 Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 2x LAN, 3x USB, 2x COM, 4x M12 PoE
JCO-6000-ORN-A-D10G Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 2x LAN, 3x USB, 2x COM, 2x 10G LAN
JCO-6000-ORN-A-4U3 Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 2x LAN, 7x USB, 2x COM
JCO-6000-ORN-A-8U3 Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 2x LAN, 11x USB, 2x COM
JCO-6000-ORN-A-4U3V Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 2x LAN, 3x USB, 2x COM, 4x USB Locking Ports
JCO-6000-ORN-A-8U3V Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 2x LAN, 3x USB, 8x USB Locking Ports, 2x COM
JCO-6000-ORN-A-M2MK Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 2x LAN, 3x USB, 2x COM, 1x M.2 M-Key
JCO-6000-ORN-A-110V Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 2x LAN, 3x USB, 2x COM, 1x 110V DC IN
JCO-6000-ORN-A-8GMSL Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 2x LAN, 3x USB, 2x COM, 8x GMSL
JCO-6000-ORN-A-OOB Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 2x LAN, 2x USB, 1x COM, 1x RJ45 OOB
