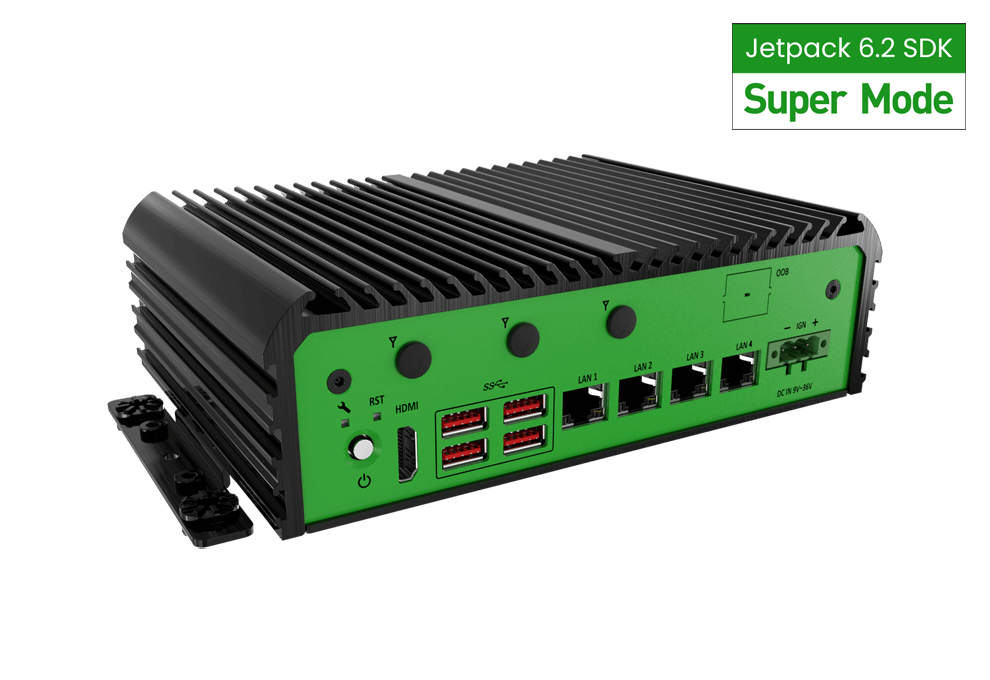

JCO-3000-ORN-B NVIDIA Jetson AGX Orin™ AI Computer

JCO-3000-ORN-B NVIDIA Jetson AGX Orin™ AI Computer

FEATURES

  • NVIDIA® Jetson Orin™ NX 8GB/16GB or Orin™ Nano 4GB/8GB
  • 1024-core / 512-core NVIDIA Ampere™ GPU, up to 100 TOPS
  • LPDDR5 3200MHz on SOM, 8 GB / 16 GB
  • 1x HDMI 2.0, 3840 x 2160 @ 60Hz
  • 4x GbE RJ45 LAN (Optional PoE+, up to 120W total)
  • 1x External Dual Nano SIM Socket, 1x Micro SD Slot
  • 1x M.2 (M Key, 2242/2280, PCIe x4, NVMe)
  • 4x USB 3.2 Gen 2, 1x USB Type-C (Flash OS), 1x Micro USB (Console)
  • 8x DI + 8x DO with Isolation
  • 9 to 36VDC Wide Range Power Input Supporting AT/ATX Mode
  • Wide Operating Temperature -20°C to 60°C (15W) / -20°C to 55°C (25W)
  • Optional OOB Remote Management and 4G/5G, Wi-Fi/BT Expansion via M.2

Description

The JCO-3000-ORN-B NVIDIA Jetson Orin™ NX AI Computer from Premio Inc. is a robust, compact fanless edge AI system designed for high-performance computing in space-constrained industrial environments. Powered by NVIDIA Jetson Orin NX or Orin Nano modules, this mid-range AI computer delivers up to 100 TOPS of AI performance, making it ideal for smart automation, edge vision systems, and intelligent robotics.

High-Density I/O and Expansion for Industrial AI

The JCO-3000-ORN-B features 4x Gigabit Ethernet ports (with optional PoE+), 4x USB 3.2 Gen 2, and 2x COM ports for versatile connectivity. With isolated 8x DI / 8x DO, CAN 2.0B, and dual SIM support, it’s engineered to excel in data-heavy, mission-critical applications. Expansion options include M.2 slots for NVMe storage, 4G/5G, and Wi-Fi/Bluetooth modules—giving developers the tools to build fast, responsive edge deployments with industrial reliability.

Rugged, Intelligent Design for Demanding Environments

Built with a durable extruded aluminium chassis, the JCO-3000-ORN-B offers silent, fanless operation and is tested to withstand shock (50G), vibration (5Grms), and temperatures from -20°C to 60°C. Optional out-of-band (OOB) management enables remote diagnostics and recovery, keeping your system accessible even in case of network failure.

Accelerate AI at the Edge

With up to 16GB LPDDR5 RAM, integrated TPM 2.0, and support for JetPack 6.2 on Ubuntu 22.04, the JCO-3000-ORN-B delivers secure, scalable performance for edge AI applications. Whether powering computer vision, predictive maintenance, or mobile robotics, this Jetson Orin NX-powered platform combines powerful inference with industrial ruggedness.

Empower your next-generation AI deployments with the JCO-3000-ORN-B—an ultra-compact edge AI computer ready for the factory floor, the field, or the front line.

Discover more about NVIDIA Jetson AGX Orin™ here.

Visit the Nvidia website.

Additional information

CPU Type

ARM CPU

Product Type

AI PC

KeyValue
Processor• 64 GB, 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU (60W/275 TOPS) • 32 GB, 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU (40W/200 TOPS)
LAN ChipsetGbE1: Marvell 88e1512 (right) 10 GbE2: Marvell AQC113(left)
System MemoryAGX Orin 32 GB/64 GB LPDDR5 @ 3200 MHz on SOM
TPMTPM 2.0
HDMI1x HDMI, 3840 x 2160 @ 60Hz
Storage1x eMMC 5.1, 64 GB, 1x M.2 (M Key, 2280, PCIe x4, Support NVMe) (Default 128GB), 1x Micro SD Socket, 2x Micro SIM Socket (M.2 B Key attached)
Operating SystemLinux Ubuntu 20.04 with JetPack
LAN2x RJ45
GMSL CameraGMSL 2 Camera Support by 2x Quad Port Mini Fakra, supporting 8x 1280x720 @ 30 FPS (Optional)
PoEBy Optional PoE Power Module, Support up to 4x RJ45/M12 LAN Module
USB1x USB 3.2 Gen 2 (10 Gbps) 1x USB Type C (Console) 1x USB 2.0 (OS Flash)
Power AdapterOptional AC/DC 24V/5A, 120W Optional AC/DC 24V/9.2A, 220W Optional AC/DC 24V/11.67V, 280W
Power ModeAT, ATX
Power Ignition SensingAdjustable Power Ignition Management
Power Supply VoltageDC IN 9~48V DC IN 48~110V, Optional (occupied 1x EBIO Bracket) 12V: PoE Power Budget Supports Up to 40~60W 24V: PoE Power Budget Supports Up to 120W
Power ProtectionOVP (Over Voltage Protection); OCP (Over Current Protection) Reverse Protection
Operating Temperature-20°C to 55°C (AGX 64G, MaxN Mode at 68 Watt, Non-Throttling) -20°C to 50°C (AGX 64G, MaxN Mode at 68 Watt, Non-Throttling, With PoE/10G/4U3V Module, full CPU+GPU stressing) with 0.6 m/s airflow
Storage Temperature-40°C to 85°C
Relative Humidity10% to 95% (non-condensing)
Construction270 (W) x 190 (D) x 95 (H) mm
Weights6 ~ 7 kg
ConstructionExtruded Aluminum with Heavy Duty Metal
Mounting OptionsWall Mounting

For processor options, please refer to datasheet.
