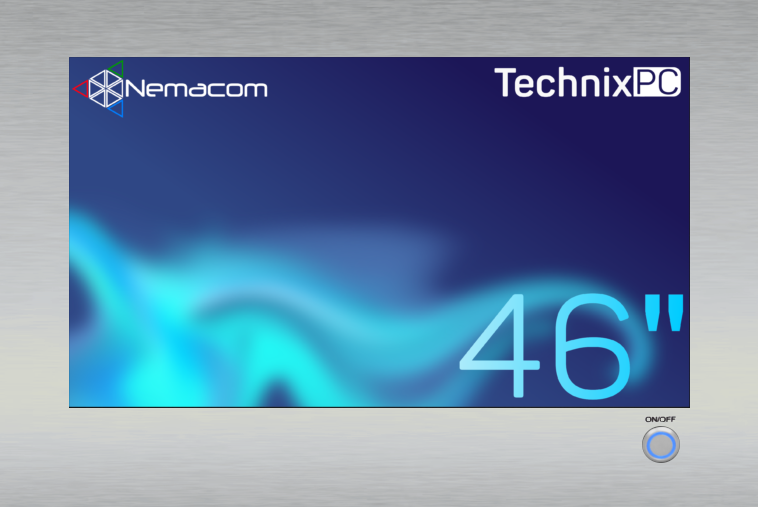

46″ Nemacom Touchscreen Panel PC.


  • Rugged Touchscreen Panel PC for Industrial Computing.
  • Powerful CPU and Mounting Options. 1920×1080 Full HD Resolution.
  • Choice of Panel Mount & VESA Mounting.
  • Black or Stainless Steel finish.

3 year warranty Nemacom

Download data sheet

Get a quote


The TPC Industrial Panel PC is a high specification, rugged 46” Touchscreen Panel PC designed and built in the UK. The TPC range excels in build & picture quality and comes with a choice of powerful computing options. Built for demanding environments, our robust Industrial Panel PCs are the ideal solution for a wide range of Industrial Computing / HMI applications.

LCD 46" TFT LCD, LED Backlights.
Resolution 1920 x 1080 Full HD
Viewing Angle H:178deg V:178deg
Display Area H1018 x V572mm
Colours 16.7 million
Brightness 700 cd/m2
Contrast 3500:1
Power Options 12v, 24v, 48v DC
Operation Temperature 0~ + 50(deg)c
Touchscreen Options Projected Capacitive
Standard PC Specification Intel Atom 1.91GHz Quad Core CPU, 4GB RAM, 240GB SSD, see Datasheet for inputs
Upgrades 6th Gen Skylake: Intel Celeron 63900TE Dual Core 2.3GHz, i3 6100TE Dual Core 2.7GHz, i5 6500TE Quad Core 2.3GHz, i7 6700TE Quad Core 2.4GHz. Wifi Optional.
Safe Power down Controlled & safe shut down of Operating System when turned off
Mounting Panel Mount, Rackmount, VESA Mount, Open Framed. *Size restrictions apply
Bespoke Options Stainless Steel, Specified paint colour finish, silk-screened company logo. *MOQ may apply
Weights & Dimension Drawings Contact Us
Approvals CE

PM | Panel Mount: A Panel Mount LCD is a rugged, industrial display with an integrated front bezel. This type of display is front mounted into a housing, enclosure or workstation. The bezel has studs on the rear for fixing in position, you would need to ‘cut-out’ a hole in your housing to accept the rear of the display, the front bezel would then sit flush with the surface of your housing.

MC | Metal Cased: A rugged, fully housed industrial display. This build option has industry standard, rear mounted VESA studs, a versatile mounting system which allows the display to be positioned on a wide range of wall brackets or desk stands.

EC | Enclosed Chassis: Often referred to as Open-framed. An Enclosed Chassis LCD is a rugged, industrial display specifically designed for rear-mounting into a wide range of housings, enclosures or kiosks. This type of display is nearly always mounted from the rear. The display has brackets down either side to enable fixing into position and your housing/enclosure would require a ‘cut-out’ equal to the viewable area of the display.
