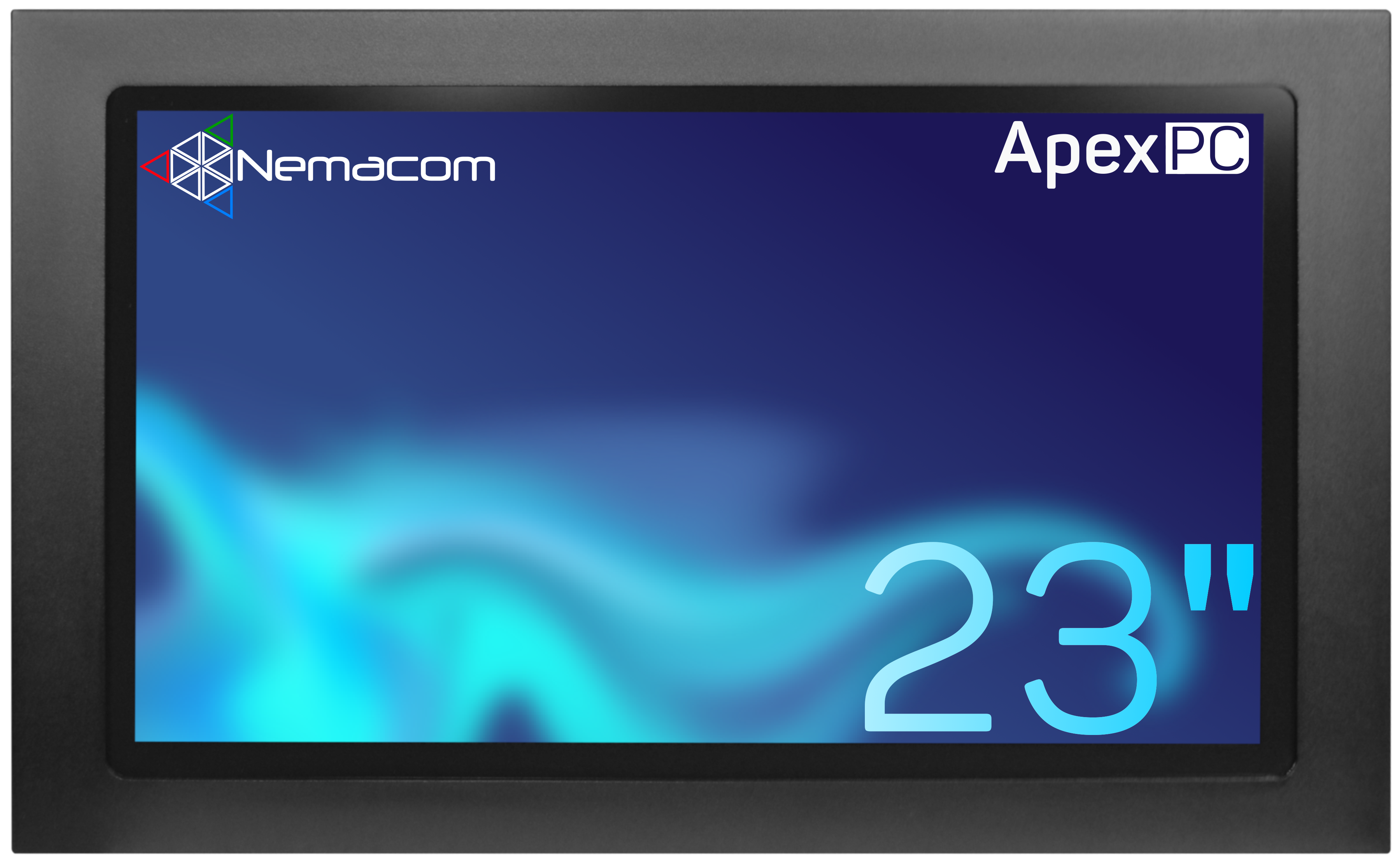

23inch Waterproof Touchscreen Panel PC IP65 Harsh Environment

Description

The APEX-PC Industrial Panel PC is a high specification, rugged, fully IP66 sealed 23” Touchscreen Panel PC designed and built in the UK. The Harsh Environment APEX range excels in build & picture quality and comes with a choice of powerful computing options. Built for the most demanding environments, our robust Industrial Panel PCs are the ideal solution for a wide range of Industrial Computing / HMI applications including Food Process, Dairy, Harsh Industrial, Oil & Gas, Marine and Automation.

Optimum reliability and performance
Industry leading 5 year warranty
Fully IP66 sealed, waterproof housing and inputs
1920 1080 Full HD resolution
Wide temperature operating range
Powerful Alder Lake 12th Gen CPU options: Intel® Core™ i3, i5, i7, Celeron®
Operating System: Win11 IoT/Pro
Available with and without a fully integrated Touchscreen
Robust internal AC power supply with safe shut-down feature
Optional 12V / 24V / 48V DC operation
Improved shock/vibration resistance
Mild Steel or Stainless Steel housing
Rear VESA studs for desk stand / wall bracket mounting
UK built and supported, over 30 years trading
Highly competitive pricing and project support.

Additional information

Display Size	23"
Additional Features	Widescreen, Ethernet Connector, Grade 316 Stainless Steel Build (Medical / Food), Hi-Brite Technology Option, M12 Connectors, Colour Options Available
Build/Mounting Options	MC – Metal Cased, VESA Mount
CPU Type	Intel CPU
IP Rating	IP65/66 (Front Panel), IP65/66 (Fully Sealed)
Product Type	Panel PC
Touchscreen Options	No Touch, PCAP Multitouch, Capacitive Touch, Resistive Touch
Output Connections	VGA Output, RS232 Output (COM)

Key	Value
LCD	23" TFT LCD, LED Backlights.
Resolution	1920 x 1080 Full HD
Housing	Fully IP66 sealed, waterproof
Housing Options	Mild Steel Black, Stainless Steel. Optional specified paint colour *MOQ may apply
Viewing Angle	H:178deg V:178deg
Display Area	H269 x W477mm
Brightness	300 cd/m2
Contrast	1000:1
Response Time	16ms
Power Supply	90~265vAC, Robust Internal PSU with two stage noise & interference suppression filtering
Power Options	12V / 24V / 48V DC
Operation Temperature	0C ~ +50(deg)C
Touchscreen Options	10-point Multitouch Surface Capacitive or Projected Capacitive
Standard PC Specification	Intel CPU, 8GB RAM, 240GB SSD
Upgrades	Upto 12th Gen Intel Core CPU, 32GB RAM, 1TB SSD, Wifi
Safe Power down	Controlled & safe shut down of Operating System when turned off
Mounting	Rear VESA studs for wall bracket / desk stand
Weights & Dimension Drawings	Contact Us
Approvals	UKCA

MC | Metal Cased: A rugged, fully housed industrial display. This build option has industry standard, rear mounted VESA studs, a versatile mounting system which allows the display to be positioned on a wide range of wall brackets or desk stands.
