21.5″ Widescreen Nemacom Touch Display



  • FULL-HD Display – 1920 x 1080
  • Widescreen 16:9 Aspect Ratio
  • VGA / HDMI / DisplayPort inputs
  • Multi-Touch P-CAP Touchscreen
  • Kastus® Anti-Microbial Screen Protector

5 year warranty Nemacom

Download data sheet

Get a quote

Description

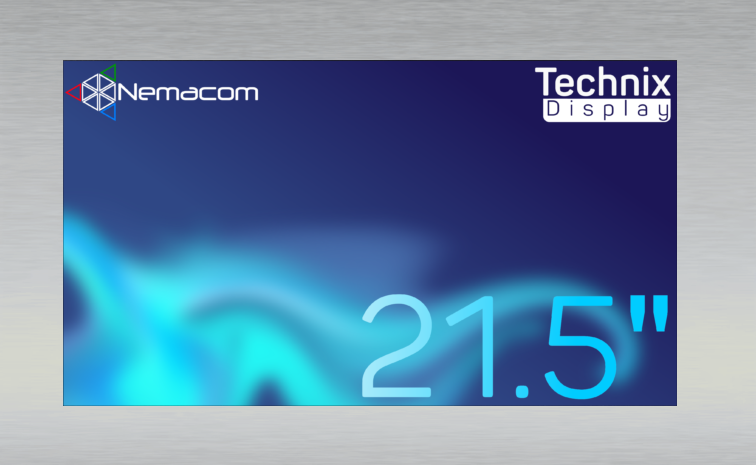

The Technix T55 (Widescreen) Industrial Monitor is a tough, reliable, high-specification 21.5” LCD Display, designed and built in the UK.
You can be confident that our monitors excel in build and picture quality using high quality components sourced from carefully selected suppliers.

With a number of mounting arrangements, various builds and finishes, additional Touchscreen options if needed, together make this Industrial Display the ideal solution for an unlimited list of applications, including Manufacturing, Process Control, Food Industry, Automation, Factories, Retail, Public

LCD 21.5" TFT LCD, LED Backlights, Aspect Ratio 16:9
Resolution 1920 x 1080p Full-HD
Pixel Pitch 0.24825mm x 0.24825mm
Viewing Angle 178° (H) / 178° (V)
Display Area 476.64mm (H) x 268.11mm (V)
Colours 16.7 Million (True 8-bits)
Brightness 300 cd/m²
Contrast 5000:1
Response Time 25ms
Inputs 15-way HD-SUB / HDMI DisplayPort
Power Supply 100-240VAC Input via external PSU; Option: 12V, 24V, 48V DC Input
Power Usage 22W typical
Operation Temperature 0°C to +60°C
Approvals UKCA
Accessories PSU & Mains lead, Signal Cable (Touch Driver and Touchscreen Interface Cable for Touchscreen)
Touchscreen Options 5-Wire Resistive (ELO option), Zytronic Multi-Touch Projected Capacitive, USB or Serial Interface
Finish / Options Black Texture finish, Option: Stainless Steel or Specified Paint Colour
Weights & Dimension Drawings Contact Us

PM | Panel Mount: A sturdy industrial monitor with an integrated front bezel.  This type of display is 'Front-Mounted' into the housing, panel, workstation or other type of enclosure.  A cut-out will be required in the housing to accept the rear of our display to fit through, studs on the rear of our front bezel are then required to fit through pre-drilled holes in the housing, once fitted the front bezel will sit flush with the surface of the housing, panel, workstation.  (Drawing available for Cut-out dimensions)

MC | Metal Cased: A robust, fully housed industrial display.  This build option is provided with studs or threaded inserts on the rear of the monitor, arranged in a VESA mounting interface standard, this allows the display to be used with a whole range of VESA standard mounting arms, brackets and stands.  (Ask us for more details)

EC | Enclosed Chassis: Sometimes referred to as 'Open-framed' or simply 'Chassis'.  Our Enclosed Chassis LCD is still a robust industrial display, specifically designed for 'Rear-Mounting' into the customers housing, panel, workstation or other enclosure.  The customer is required to 'cut-out' an aperture equal to the display area of the LCD, the unit has mounting brackets down either side to enable it to be fixed in position.
