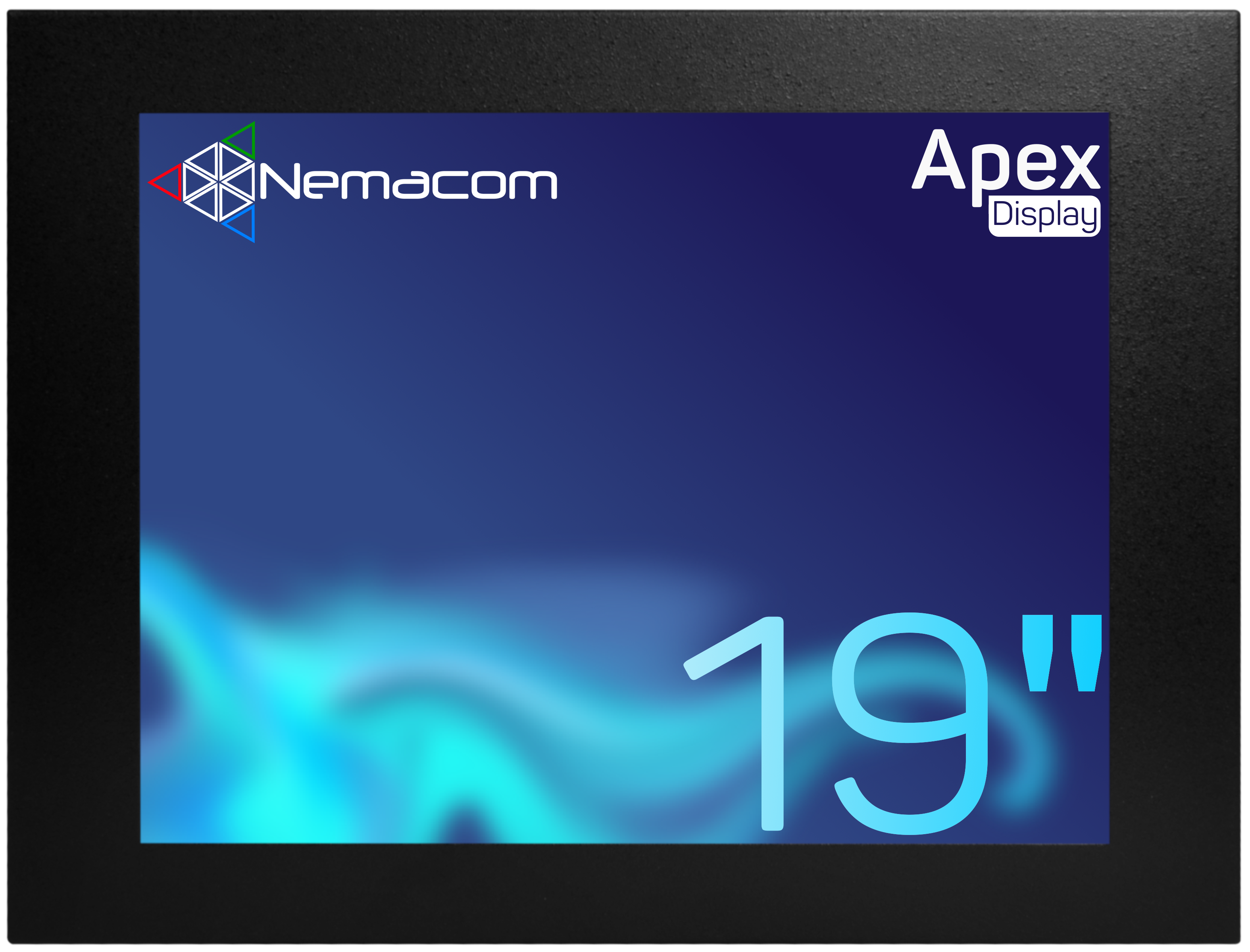

19″ Fully IP65 Sealed Harsh Environment Touchscreen Display.



Download data sheet

Get a quote

Description

The APEX Industrial Display is a high specification, rugged, fully IP65 sealed 19” Touchscreen LCD designed and built in the UK. The Harsh Environment APEX range excels in build & picture quality and is manufactured for the most demanding environments. Robust, reliable and fully protected against water & dust ingress, the APEX Display is the ideal solution for a wide range of Industrial HMI applications including Food Process, Dairy, Harsh Industrial, Oil & Gas, Marine and Automation.

LCD 19" TFT LCD, 0.294mm x 0.244mm pixel pitch, LED Backlights.
Resolution 1280 x 1024
Housing Fully IP65 sealed, waterproof
Housing Options Mild Steel Black, Stainless Steel. Optional specified paint colour *MOQ may apply
Viewing Andle H:178deg V:178deg
Display Area H376 x V301mm
Colours 16.7 million
Brightness 300 cd/m2
Contrast 2000:1
Response Time 20ms
Input Option VGA, DVI, Composite Video. To be specified by customer.
Power Supply 100~240vAC External PSU (not IP sealed). Optional 12, 24, 48v DC.
Operation Temperature 0~50degC
Touchscreen Options 5-wire Resistive, 3M Capacitive, Projected Capacitive, USB or Serial Interface
Accessories User Manual, Power cable, Signal cable of choice, drivers and interface cable for Touchscreen if applicable.
Mounting Rear VESA studs for wall bracket / desk stand
Weights & Dimension Drawings Contact Us
Approvals CE

MC | Metal Cased: A rugged, fully housed industrial display. This build option has industry standard, rear mounted VESA studs, a versatile mounting system which allows the display to be positioned on a wide range of wall brackets or desk stands.
