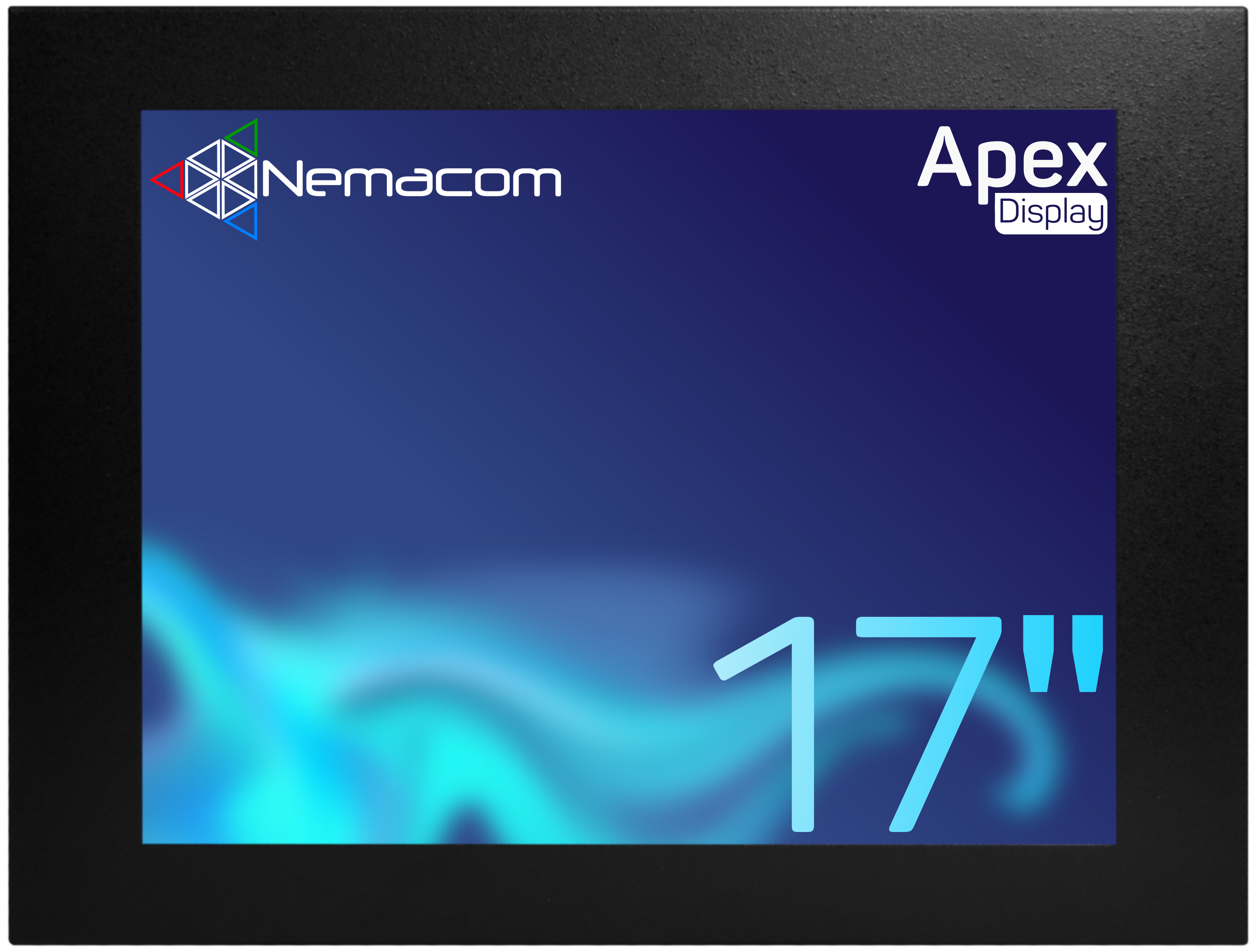

17″ Waterproof Nemacom Display.


  • Waterproof Display, IP66 Sealed
  • Fully protected against Water and Dust ingress
  • 1280 x 1024 Resolution & Composite Video Input
  • Choice of Black or Stainless Steel Housing
  • Choice of Touchscreens Available

5 year warranty Nemacom

Download data sheet

Get a quote


The APEX range of Industrial Displays have been designed and built to withstand harsh, demanding environments.  Our range of Waterproof Displays are IP66 rated for peace of mind when water, chemicals or dust are present in your working environment, a full wash-down of this product is also no problem.
Whether you choose to use them inside or outside we can guarantee their reliability which is why we can give our industry-leading 5-Year Warranty.

LCD 17" TFT LCD, LED Backlights
Resolution 1280 x 1024 SXGA, Aspect Ratio 5:4
Pixel Pitch 0.264mm x 0.264mm
Housing Options Mild Steel painted (any colour option), Grade 304 or 316 Stainless Steel
Viewing Angle 160° (H) / 60° (Up) / 80° (Down)
Display Area 338mm (H) x 270mm (V)
Colours 16.7 million (RGB 8-bits)
Brightness 350 cd/m²
Contrast 800:1
Response Time 30ms
Signal Inputs A17: VGA and/or HDMI | A17-V: VGA and/or HDMI and/or Composite Video
Power Supply 100-240V AC via External PSU, Option: 12V, 24V, 48V DC input
Operation Temperature -20°C to +80°C
Touchscreen Options 5-wire Resistive (ELO option), 3M Capacitive, Zytronic Projected Capacitive, USB or Serial Interface
Accessories Non-IP Rated PSU (IP66 rated PSU optional), UK Mains lead, Signal cable, (Touch Driver and Interface cable for touchscreen)

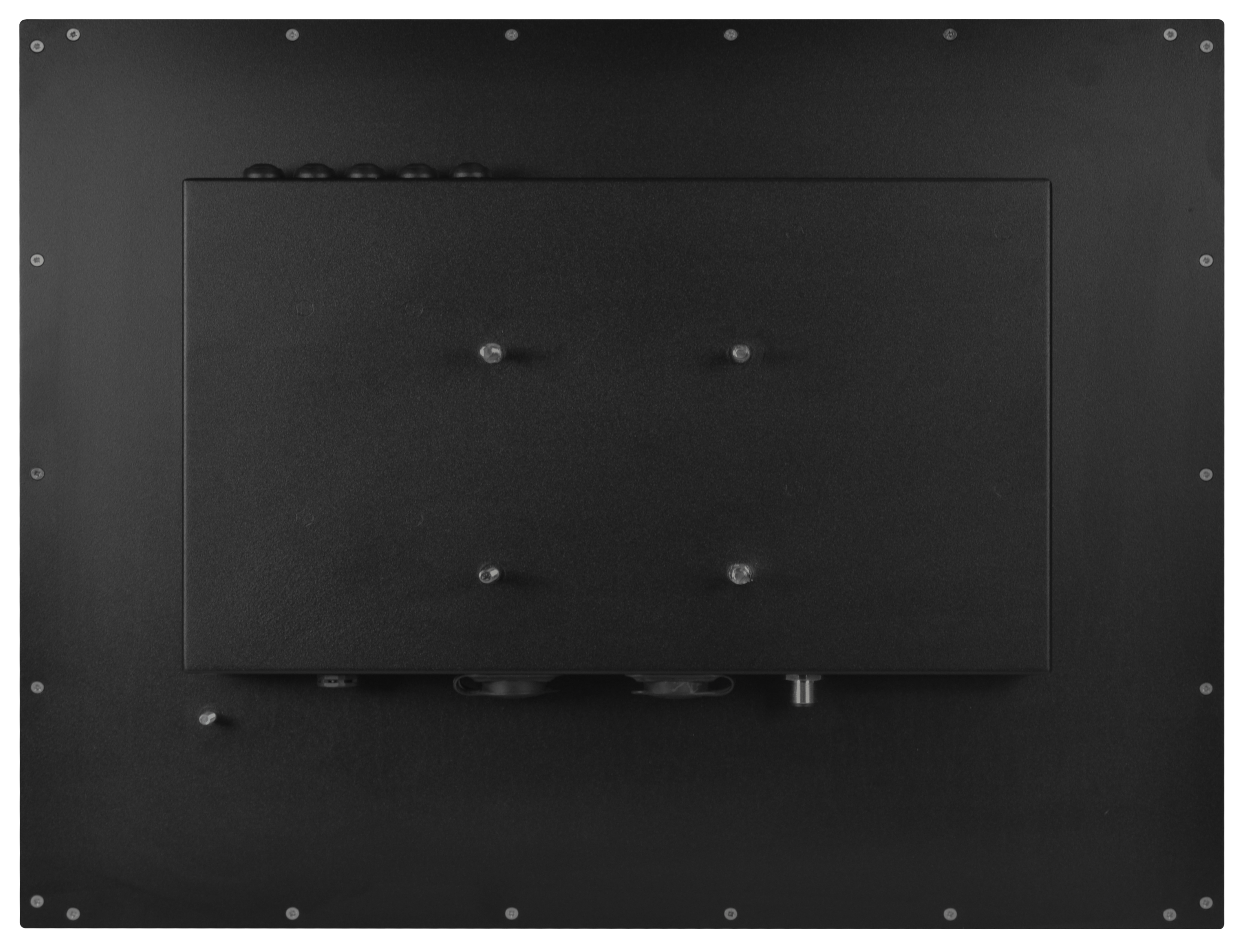

Mounting Rear VESA Mounting Interface
Dimension Drawings & Weights Contact Us
Approvals UKCA

MC | Metal Cased: A rugged, fully housed industrial display.  This build option is provided with studs/threads on the rear, arranged in a VESA mounting interface standard, which allows the display to be used with a whole range of VESA standard mounting Arms, Brackets  and Stands.  (ask us for more details)
