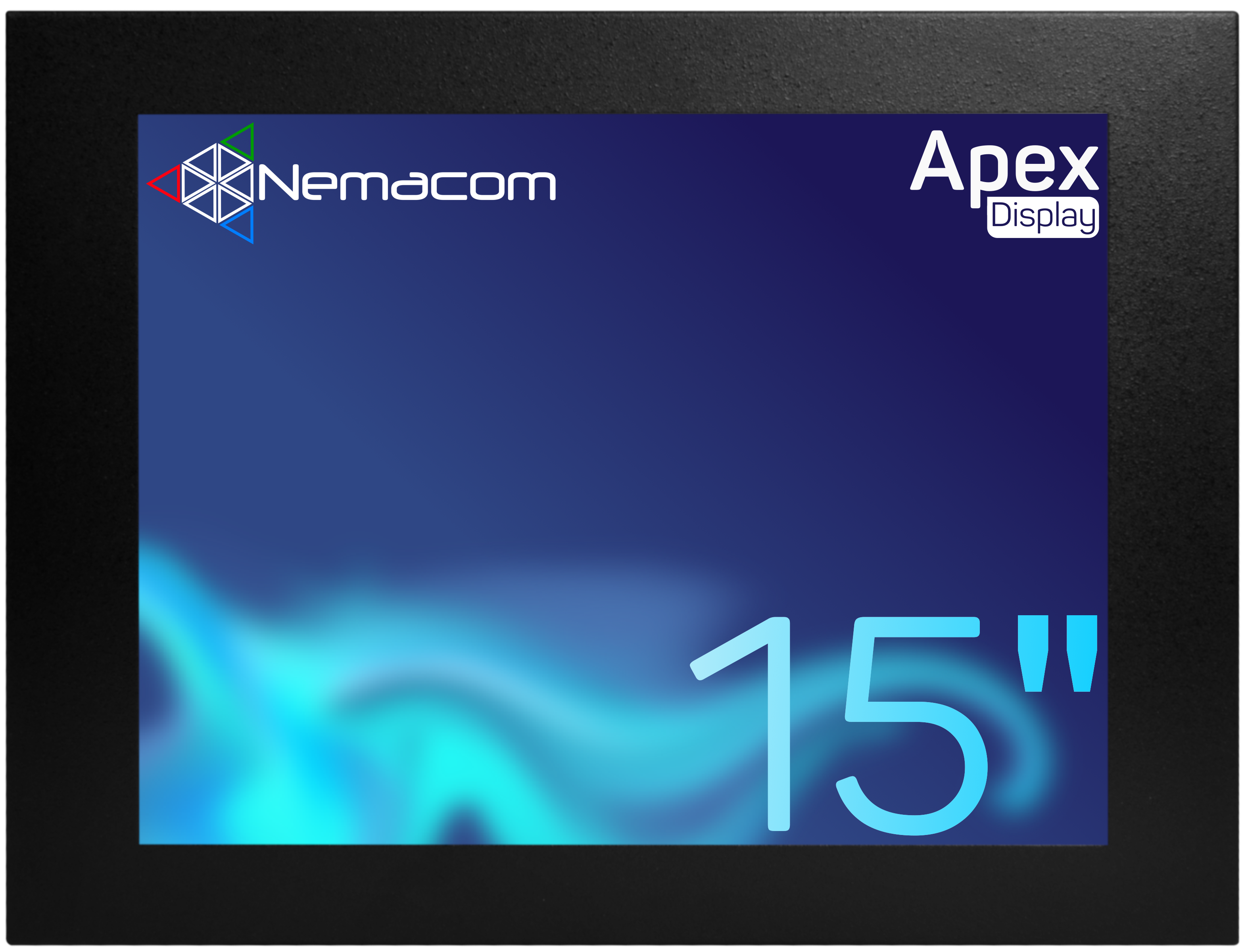

15″ Waterproof Nemacom Display.



  • Waterproof Display, IP66 Sealed
  • Fully protected against Water and Dust ingress
  • 1024 x 768 Resolution
  • Choice of Black or Stainless Steel Housing
  • Choice of Touchscreen options



Download data sheet

Get a quote

Description

The APEX range of Industrial Displays have been designed and built to withstand harsh, demanding environments.  Our range of Waterproof Displays are IP66 rated for peace of mind when water, chemicals or dust are present in your working environment, a full wash-down of this product is also no problem.
Whether you choose to use them inside or outside we can guarantee their reliability which is why we can give our industry-leading 5-Year Warranty.

LCD 15" TFT LCD, LED Backlights
Resolution 1024 x 768 XGA
Pixel Pitch 0.297mm x 0.297mm
Colours 16.2 Million
Viewing Angle 170° (H) / 170° (V)
Display Area 304.1mm (H) / 228.1mm(V)
Brightness 350 cd/m²
Contrast 2500:1
Response Time 25ms
Inputs IP66 Sealed VGA 15-pin H-DSUB or/and IP66 Sealed HDMI
Power Supply Standard: 100-240V AC External PSU (IP66 PSU Optional), Option: 12V, 24V, 48V DC direct
Operation Temperature -10°C to +65°C
Touchscreen (Optional) 5-wire Resistive (ELO option), Surface Capacitive, USB or Serial Interface
Accessories Non-IP rated PSU (IP66 rated PSU optional) UK Mains lead, Signal Cable (Touch Driver USB drive and Interface Cable for Touchscreen)
Mounting Rear VESA Mounting Interface
Housing Options Mild Steel painted Black or any Colour option, Grade 304 or 316 Stainless Steel
Approvals UKCA

MC | Metal Cased: A rugged, fully housed industrial display.  This build option is provided with studs/threads on the rear, arranged in a VESA mounting interface standard, which allows the display to be used with a whole range of VESA standard mounting Arms, Brackets  and Stands.  (ask us for more details)
