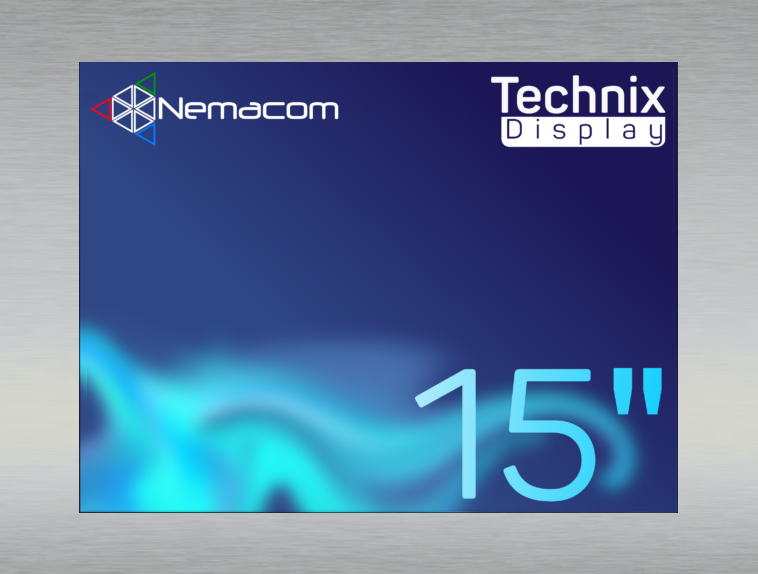

15″ Nemacom Technix Industrial Display



  • Viewable Area Sealed to IP66
  • 1024 x 768 Resolution
  • Black, Custom Paint, or Stainless Steel Finish
  • Panel Mount, Rackmount, Cased Options
  • Choice of Touchscreens available

5 year warranty Nemacom

Download data sheet

Get a quote
Category:

Description

The Technix T38 is a very high specification 15″ Industrial LCD Display that is Rugged, Dependable and can be tailored/designed to meet the customers needs.

The Technix range excels in build & picture quality using only high quality components.  The standard unit has a choice of mounting options, various finishes and Touchscreen options the customer can add to the product, making this Industrial Display the ideal solution for a wide range of applications, including Manufacturing, Process Control, Automation, Factory, Warehouse.

Display 15" TFT LCD, LED Backlights
Resolution 1024 x 768 XGA
Pixel Pitch 0.297mm x 0.297mm
Viewing Angle 170°(H) / 170°(V)
Display Area 304.1mm(H) x 228.1mm(V)
Colours 16.2 Million
Brightness 350 cd/m²
Contrast Ratio 2500:1
Response Time 25ms
Inputs VGA, HDMI, DisplayPort
Power Supply 100-240V AC (external PSU), Option: 12V, 24V, 48V DC
Power Usage 15 Watts typical
Operating Temperature -10°C to +65°C
Approvals UKCA
Accessories PSU & Mains lead, Signal Cable (Touch Driver and Touchscreen Interface Cable for Touchscreen)
Touchscreen Options 5-wire Resistive (ELO option), 3M Surface Capacitive, USB or Serial Interface
Finish / Options Black Texture finish, Options: Stainless Steel or specified RAL colour
Weights & Dimension Drawings Contact Us

PM | Panel Mount: A rugged, industrial display with an integrated front bezel.  This type of display is front-mounted into the customers housing, panel, workstation or other enclosure.  The customer is required to 'cut-out' an aperture in the housing to accept the rear of our display to fit through, studs on the rear of the bezel are then required to fit through pre-drilled holes, the front bezel then sits flush with the surface of the housing, panel or workstation.

RM | Rackmount: A rugged, industrial display with an integrated 19" front bezel.  This type of display is mounted from the front into an industry standard 19" Server rack or a housing that utilises the 'Rack-mounting' system measured in "U" height.

MC | Metal Cased: A rugged, fully housed industrial display. This build option is provided with studs/threads on the rear, arranged in a VESA mounting interface standard, which allows the display to be used with a whole range of VESA standard mounting Arms, Brackets and Stands.  (Ask us for more details)

EC | Enclosed Chassis: Sometimes referred to as 'Open-framed' or simply 'Chassis'.  An Enclosed Chassis LCD is a rugged, industrial display specifically designed for rear-mounting into the customers housing, panel, workstation or other enclosure.  The customer is required to 'cut-out' an aperture equal to the display area of the LCD, the unit has mounting brackets down either side to enable it to be fixed in position.
